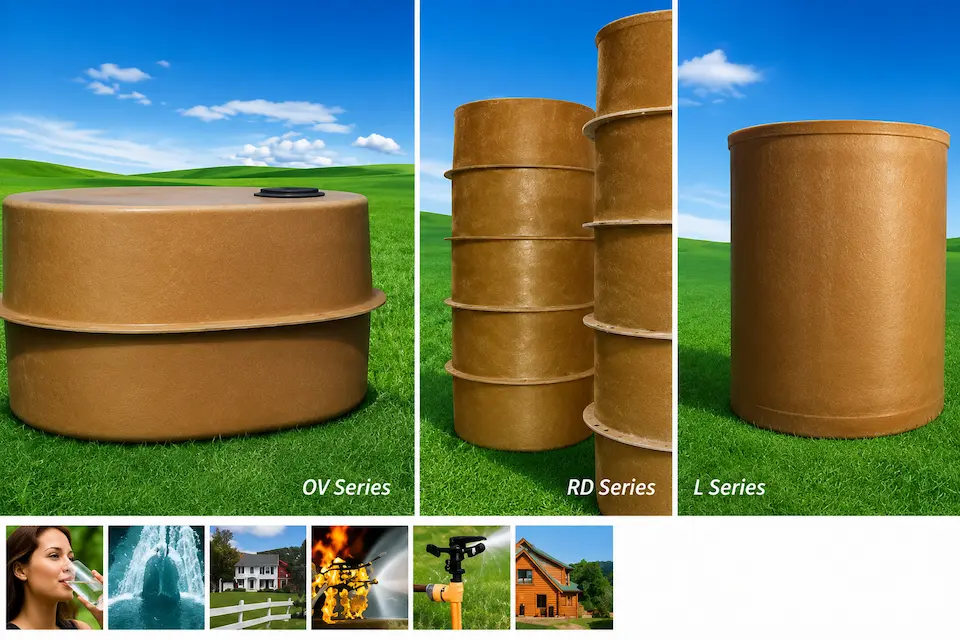

Sectional Above Ground

Above Ground Sectional

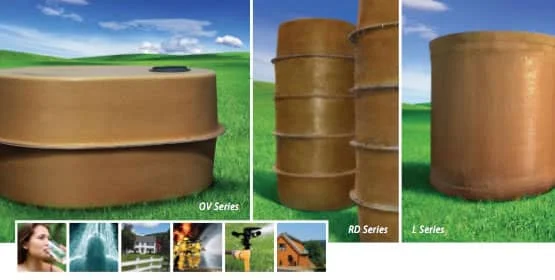

Sectional (RD, OV Series):

Water & Wastewater (sectional)

Model Capacity (Imp. Gal.) Capacity (US Gal.)Dimensions Weight (lbs.)# of Sections
AG250-RD2503005’6″D x 24″H1351
AG500-RD5006005’6″D x 48″H1902
AG750-RD7509005’6″D x 72″H3003
AG1000-RD100012005’6″D x 96″H4004

Water & Wastewater (sectional)

Model Capacity (Imp. Gal.) Capacity (US Gal.)Dimensions Weight (lbs.)# of Sections
AG500-OV5006006’6″W x 8’6″L x 24″H2651
AG625-OV6257506’6″W x 8’6″L x 30″H2801
AG1000-OV100012006’6″W x 8’6″L x 48″H3502
AG1250-OV125015006’6″W x 8’6″L x 60″H3802
AG1500-OV150018006’6″W x 8’6″L x 60″H5253
AG1750-OV175021006’6″W x 8’6″L x 84″H5553
AG1875-OV187522506’6″W x 8’6″L x 90″H5703
AG2000-OV200024006’6″W x 8’6″L x 96″H6754
AG2500-OV250030006’6″W x 8’6″L x 120″H8744

Above ground models listed above are available for water or wastewater.

Please specify (W) for water or (S) for wastewater when ordering. i.e.. AGW750-RD (Water) or AGS750 (Wastewater).

Product Specification

Water & Wastewater (sectional)

Model Capacity
(Imp. Gal.)
Capacity
(US Gal.)
Dimensions Weight (lbs.)# of Sections
AG250-RD2503005’6″D x 24″H1351
AG500-RD5006005’6″D x 48″H1902
AG750-RD7509005’6″D x 72″H3003
AG1000-RD100012005’6″D x 96″H4004

Water & Wastewater (sectional)

Model Capacity
(Imp. Gal.)
Capacity
(US Gal.)
Dimensions Weight (lbs.)# of Sections
AG500-OV5006006’6″W x 8’6″L x 24″H2651
AG625-OV6257506’6″W x 8’6″L x 30″H2801
AG1000-OV100012006’6″W x 8’6″L x 48″H3502
AG1250-OV125015006’6″W x 8’6″L x 60″H3802
AG1500-OV150018006’6″W x 8’6″L x 60″H5253
AG1750-OV175021006’6″W x 8’6″L x 84″H5553
AG1875-OV187522506’6″W x 8’6″L x 90″H5703
AG2000-OV200024006’6″W x 8’6″L x 96″H6754
AG2500-OV250030006’6″W x 8’6″L x 120″H8744

Above ground models listed above are available for water or wastewater.

Please specify (W) for water or (S) for wastewater when ordering. i.e.. AGW750-RD (Water) or AGS750 (Wastewater).
