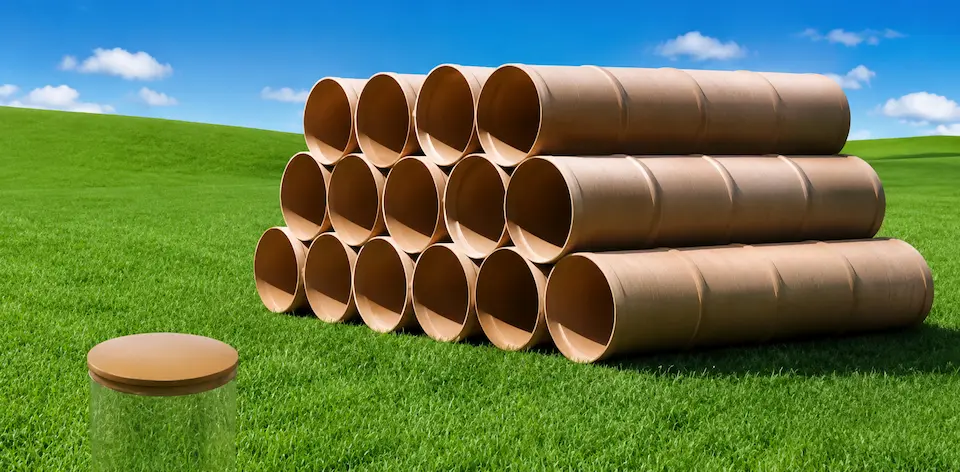

Well Casing Features

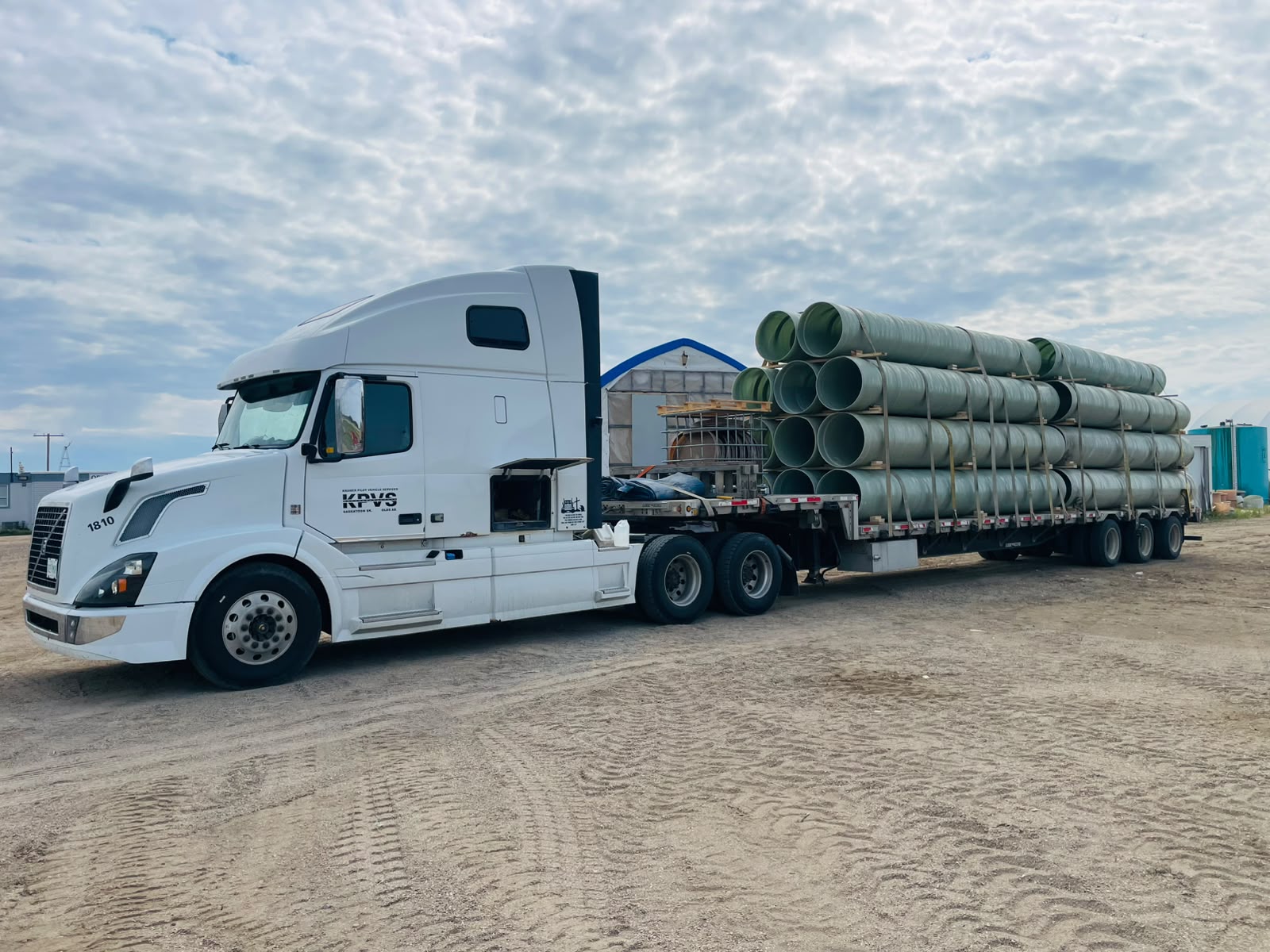

  • Lightweight – a fiberglass well casing is lightweight, thus easier to ship and easier to install than well casing made of other material
  • Corrosion Resistant – will not corrode or break down like other products utilized to hold liquids. This eliminates the possibility of leakage due to either internal or external rusting
  • Cost effective alternative to other materials
  • Durable and Long Lasting.
  • Well casings are NSF/ANSI 61 Approved
  • Filament Wound – increased strength without the added weight

Well Casing Features – Download

Well Casing Uses

Water well casings can be used for a number of applications including:

  • Air release chambers
  • Sump tanks
  • Lift stations
  • Carwash pits
  • Concrete forms
  • Pipe tanks
  • Well liners

Fiberglass, the casing of choice!



Water & Wastewater

Specifications 30″ Diameter Standard 30″ Diameter Heavy
Unit Length (feet/mm) 20’/6100 mm 20’/6100mm
Thickness (Inches/ mm) .25″/6.35 mm .3125″5/7.94m
Weight (Lbs/Length) ( Kg/Length) 305 lbs/139 kgs 370 Lbs/167 kgs
Capacities (Imp. Gal/Ft) (Litre/m) 30.6 Gallons/456 ltrs 30.6 Gals/456 Ltrs



Well Cap/Bottom

Specifications   30″ Diameter Heavy
Thickness (Inches/mm) 30″/7.6 mm
Weight (Lbs/Kg) 15lbs/6.8 kgs
BURIAL DEPTH FEET/METRES 60’/12.2 m 100’/30.5m
